Conditional Step

If/then branching based on a condition.

What it does

• Evaluates a boolean condition and routes the flow down the true or false branch.
• Helps you keep business rules readable without duplicating steps.

When to use it

• To skip, reroute, or fail fast when inputs are missing or invalid.
• To guard expensive calls (only call an API when prerequisites are met).
• To apply different processing paths for VIP orders, countries, channels, statuses, etc.

How to configure

• In the UI, build the condition using:
  • References to existing values (for example, data.order.total, steps.lookup.outputs.status, variables.warehouseId)
  • Literal values (numbers, text, booleans)
• Combine checks with AND/OR, or invert with NOT.
• Make sure your outgoing connections are labeled true and false (this is how Conditional routing is represented in the exported execution plan).

Condition operators

If you export/import scenarios as JSON, Conditional uses a condition expression with these operators:

• Logic: AND, OR, NOT
• Comparisons: EQ, NE, GT, GTE, LT, LTE
• String checks: STARTS_WITH, ENDS_WITH, CONTAINS
• Set/list checks: IN, NOT_IN, CONTAINS
• Existence/emptiness: IS_DEFINED, IS_EMPTY, IS_NOT_EMPTY
• Other: LENGTH

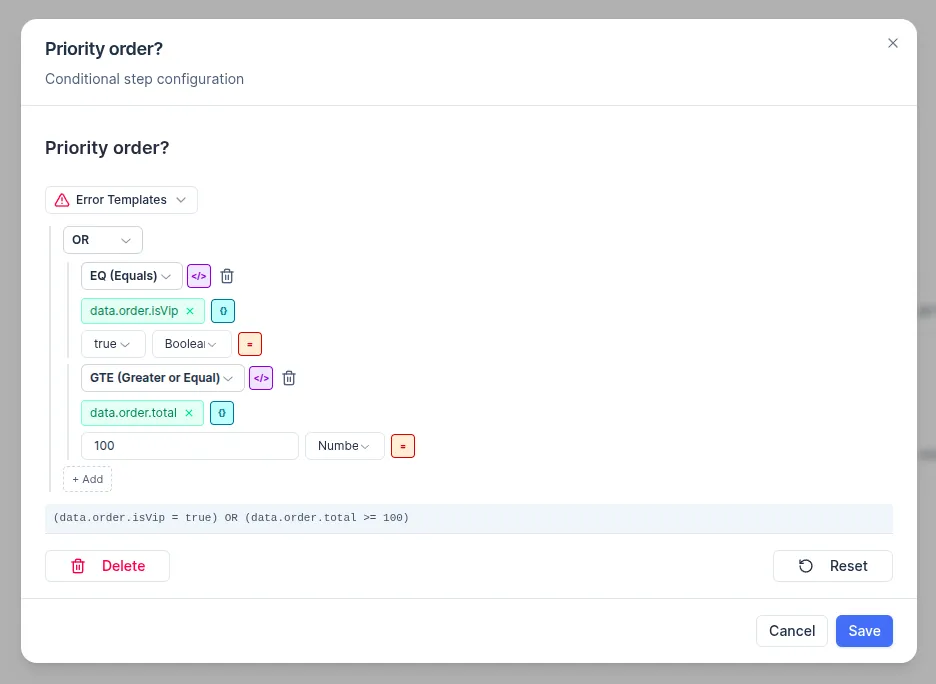

Practical example (VIP / high-value order routing)

Scenario goal: if an incoming order is VIP or its total is at least $100, send it down a priority fulfillment path; otherwise follow the standard path.

Typical patterns

• Stop or reroute if required fields are missing or empty.
• Send VIP or high-value orders down a special fulfillment path.
• Only call an external API if inventory is available or a retry flag is set.
